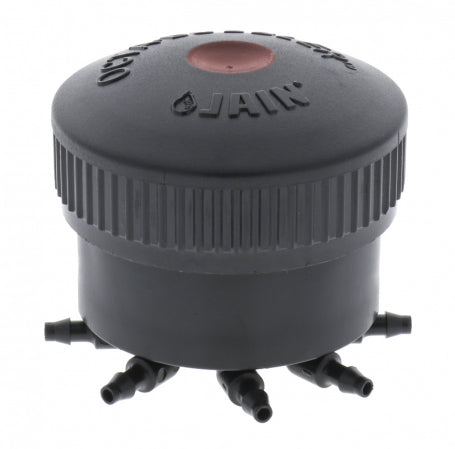

Octa-Bubbler 8-Outlet Drip Irrigation Manifold

The highly sought after Octa-Bubbler from Jain Irrigation connects to 1/2" PVC or poly sprinkler risers to extend your irrigation coverage to hard-to-reach places. The Octa-Bubbler has eight self cleaning, pressure compensating 1/4" barbed ports. The pre-set flow rate (2, 6, 10 or 20 GPH ) applies to each port. The individual barbs swivel 180 degrees to provide flexibility when laying out your 1/4" tubing.

Flow control devices (sold separately) can be swapped out for each port to facilitate variable flow rates from one Octa-Bubbler. Caps are also available to block unused ports.

The Octa-Bubbler is UV and chemical resistant with a plastic body for stable performance year-round. A precision molded liquid silicone rubber diaphragm ensures consistent pressure compensation, uniform water application, and long lasting high quality performance. Ideal for converting sprinkler systems to low flow drip irrigation, or as an addition to your sprinkler system to irrigate areas outside the sprinklers pattern, such as behind trees or structures, or on patios and decks.

Octa-Bubbler Features:

• Wide pressure compensating range of 20-60 PSI
• Built-in backflow prevention device for added protection
• Can be installed above or below grade
• Connects with 1/2” FPT inlet
• Compatible with .170" ID x .250" OD micro tubing and/or micro dripline tubing for water distribution
• Available in four color-coded flow rates:
• Blue - 2 GPH
• Black - 6 GPH
• Red - 10 GPH
• Green - 20 GPH
